Electromagnetic heater 15KW

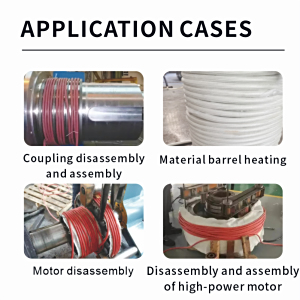

Widely used, one machine can handle product applications such as interference fit assembly of workpieces, bearing sleeves, couplings, gears, pulleys, motor heating and copper wire pulling, motor rotor hot disassembly and assembly of shafts, pulling wheels

High heat conversion rate, more energy-efficient, and better safety. During the magnetic induction heating process, no substances are released, making it more environmentally friendly More precise temperature control, adjustable power, long service life, and fewer vulnerable parts Easy to install, only requires simple support, high heating efficiency, short heating time, can increase work output

Consult Now

customer service telephone numbers 400-900-8358

Power	Voltage	Inductance	Input Current	Line	Winding length（m）	Thickness of insulation cotton(mm)
10KW	380V	260-300uh	15A	10mm	48-50m	20-25mm
20KW	380V	260-300uh	31A	16mm	48-50m	20-25mm
30KW	380V	200-240uh	45A	20mm	50-53m	20-30mm
40KW	380V	180-220uh	60A	25m	47-49m	20-30mm
60KW	380V	155-165uh	91A	25mm	43-45m	20-30mm
80KW	380V	130-150uh	120A	35mm	40-43m	20-30mm
100KW	380V	100-120uh	151A	35mm	38-42m	20-30mm
120KW	380V	100-120uh	181A	50mm	35-38m	20-30mm
