Automatic tracking of ultra-high frequency 100KW-400KHz

Quenching: shafts, gears, sprockets, pliers cutting edges, automotive parts, machine tool guides, etc., with a quenching depth of less than 1.5mm

Welding: Drill bits, cutters, drills, turning tools, reamers, stainless steel pot bottom composite welding, various mechanical parts welding and annealing: continuous annealing of stainless steel pipes, annealing of metal wire and pipes, hydraulic parts, automotive parts, knife cutters, stainless steel cans annealing and melting: precious metal materials such as gold, silver, copper, iron, aluminum, lead, platinum, etc

Consult Now

customer service telephone numbers 400-900-8358

=Size and installation requirements for 100KW-400KHZ
	External dimensions	nput wire diameter	Input voltage grounding wire diameter	Inlet water pressure and quality		Continuous heating water temperature requirements
Split host	*1850mm1200mm600mm*	75mm²	6mm² annealed copper wire	0.3Mpa(Distilled water, purified water) The inlet end needs to be connected in series with a filter (standard)		≤28℃
Split machine
Total inflow and outflow water	Standard water outlet 1.5 inch stainless steel outer teeth
Output	Copper plate joint with three holes connected and one hole reserved	External connectors	Sensor adapter copper plate	6-hole set
			Signal wiring remote control box	5-meter 5-core dual head aviation plug cable
		sensor
			Specially made 2
Equipment Technical Parameters
model	NPUT VOLTAGE	Output voltage	Maximum output power		frequency
100KW	Three phase electricity380V 50/60HZ	50-550V	100KW		400KZ

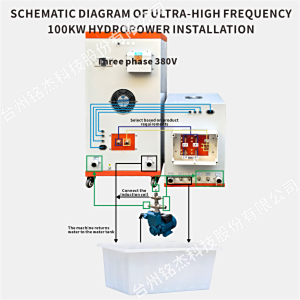

Installation instructions for total inlet and outlet water	position	joint	External requirements	notes
	Host side	Standard 1.5-inch stainless steel external tooth joint	The caliber of the adapter can only be increased, not decreased

Attention: Due to excessive power, the cooling water for the sensor should be supplied separately by a water pump of at least 1.5KW to ensure sufficient flow and pressure, and to avoid burning the sensor due to excessive instantaneous current!!!
