Product Center

Professional production of high-frequency, intermediate frequency, ultrasonic frequency,
ultra-high frequency,automatic quenching machine tools, and various non-standard automation.
High frequency 80W
High frequency 80W
  • High frequency 80W
  • High frequency 80W

High frequency 80W

All solid state adopts power devices MOSFET and IGBT to achieve automatic frequency tracking

High frequency, fast heating speed, and energy consumption are only 20% -50% of electronic tubes, which is also greatly energy-saving compared to other heating methods Safe, reliable, and easy to operate. The output terminal of the device is a safe voltage, which will not harm personal safety. Fully functional manual and automatic adjustment. If any parameter fails to meet the requirements for overcurrent, overvoltage, overheating, water shortage, or phase loss, the machine will automatically protect itself. No open flames, no pollution, no noise, in compliance with environmental and fire protection requirements, enhancing the image of the enterprise.

Consult Now
customer service telephone numbers 400-900-8358

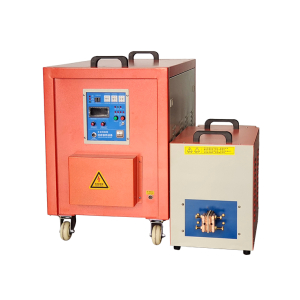

PRODUCT MODEL:

MJ-80KW

Input maximum power:

80KW

Inlet water temperature:

<45℃

Operating Frequency:

30-100KHZ

Control mode:

analog control

Cooling water pressure:

0.3Mpa

Equipment structure:

split type

INPUT VOLTAGE:

Three phase 380V

Host size:

885X470X720mm

Weight:

68KG

Extension size:

580X305X445mm

Extension weight:

60KG
