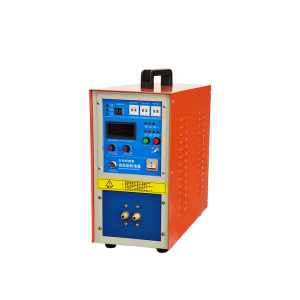

High frequency 20KW
High frequency 20KW
  • High frequency 20KW
  • High frequency 20KW

High frequency 20KW

All solid state adopts power devices MOSFET and IGBT to achieve automatic frequency tracking.

High frequency, fast heating speed, and energy consumption are only 20% -50% of electronic tubes, which is also much more energy-efficient compared to other heating methods. Safe, reliable, and easy to operate. The output terminal of the device is a safe voltage, which will not harm personal safety. Fully functional manual and automatic adjustment. If any parameter fails to meet the requirements for overcurrent, overvoltage, overheating, water shortage, or phase loss, the machine will automatically protect itself. No open flames, no pollution, no noise, in compliance with environmental and fire protection requirements, enhancing the image of the enterprise.

Consult Now
customer service telephone numbers 400-900-8358

PRODUCT MODEL:

MJ-20KW

Input power:

20KW

Inlet water temperature:

<45℃

Operating Frequency:

30-100KHZ

Control mode:

analog control

Cooling water pressure:

0.2Mpa

Equipment structure:

Integrated

INPUT VOLTAGE:

Single phase 220V

Host size:

505X205X450mm

Weight:

22KG
