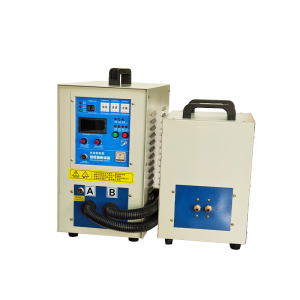

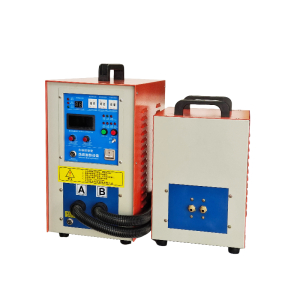

High frequency 25KW split type
High frequency 25KW split type
  • High frequency 25KW split type
  • High frequency 25KW split type

High frequency 25KW split type

All solid state adopts power devices MOSFET and IGBT to achieve automatic frequency tracking.

High frequency, fast heating speed, and energy consumption are only 20% -50% of electronic tubes, which is also much more energy-efficient compared to other heating methods. Safe, reliable, and easy to operate. The output terminal of the device is a safe voltage, which will not harm personal safety. Fully functional manual and automatic adjustment. If any parameter fails to meet the requirements for overcurrent, overvoltage, overheating, water shortage, or phase loss, the machine will automatically protect itself. No open flames, no pollution, no noise, in compliance with environmental and fire protection requirements, enhancing the image of the enterprise.

Consult Now
customer service telephone numbers 400-900-8358

PRODUCT MODEL:

MJ-25KW

Input power:

25KW

Inlet water temperature:

<45℃

Operating Frequency:

30-100KHZ

Control mode:

analog control

Cooling water pressure:

0.2Mpa

Equipment structure:

split type

INPUT VOLTAGE:

Three phase 380V

Host size:

530X245X460mm

Weight:

29KG

Extension size:

300X245X350mm

Extension weight:

16KG
