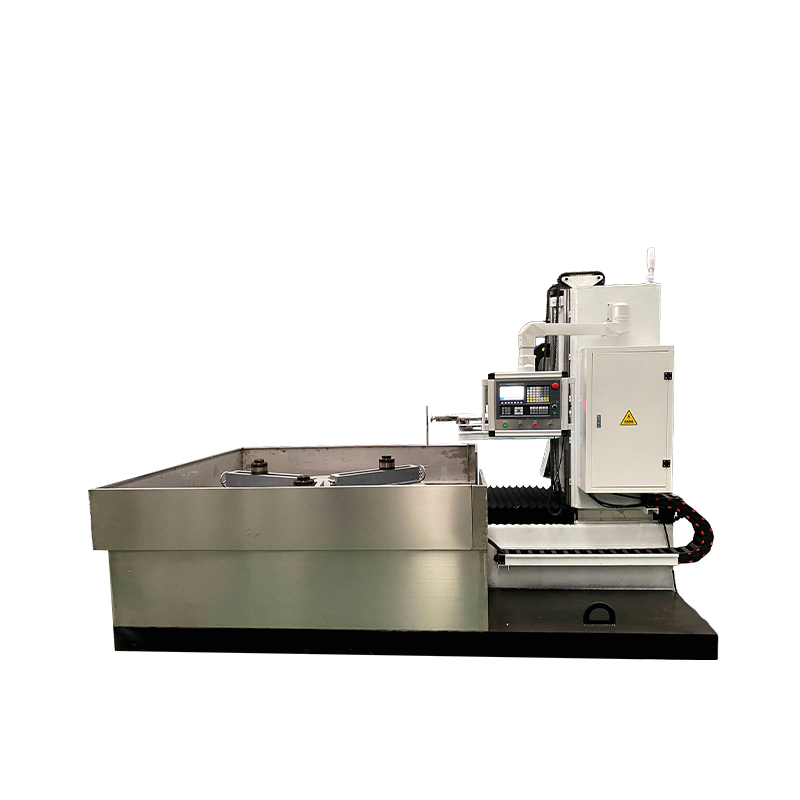

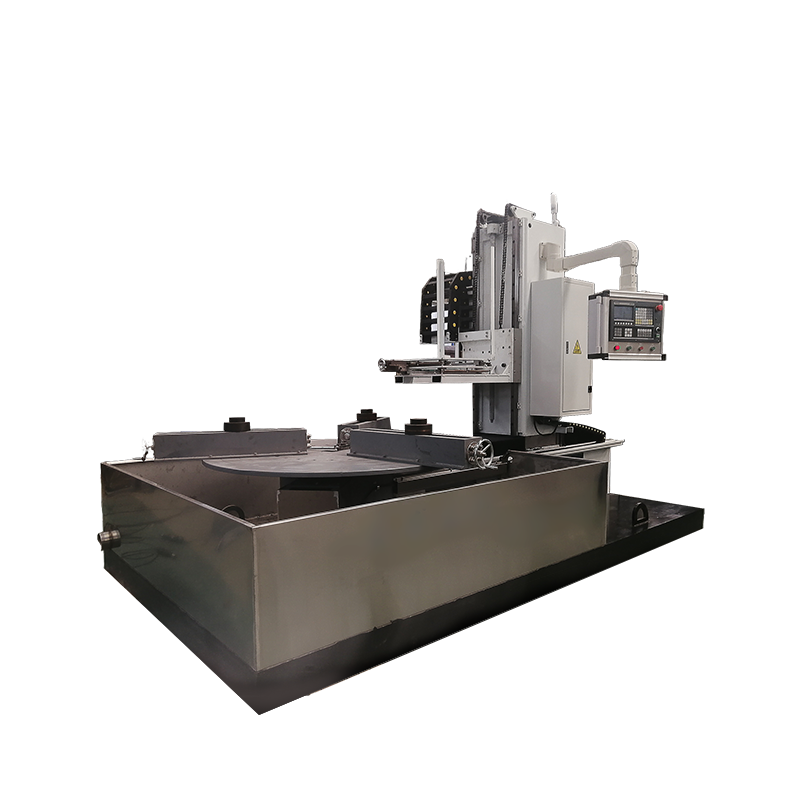

600L CNC quenching machine tool

Suitable for surface quenching of motor shafts, pin shafts, gears, camshafts, automotive parts, precision hardware components, etc

CNC control system: Humanized CNC design with functions such as continuous quenching, simultaneous quenching, segmented continuous quenching, segmented simultaneous quenching, etc. The PLC touch screen is easy to operate, real-time display, and can store more than 100 processes. The quenching hardness is high, the speed is fast, the quenching does not deform, and the top cone can move up and down. It has the characteristics of energy conservation, environmental protection, intelligence, automation, less oxidation, and less deformation, saving time and effort. The quenching process does not require manual adjustment. The program is set up and the equipment automatically completes the quenching process

Consult Now

customer service telephone numbers 400-900-8358

project	parameter	project	parameter
Workstation	1	maximum workpiece weight	200KG
Maximum clamping part length	600MM	Quenching feed rate	6-3000mm/min
Maximum clamping part diameter	350MM	Transformer moves quickly	3000mm/min
Maximum quenching length	600MM	Numerical Control System Control Accuracy	0.001mm
Numerical Control System	Kane Emperor System	servo motor	Servo motor Mig with brake motor
operating mode	Automatic or manual (CNC programming)
Machine tool functions	Automatic lifting, rotation, spraying, scanning, segmented quenching
cover an area	*Length 1280MM Width 680MM * Height 1900MM**
