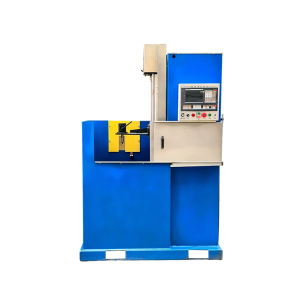

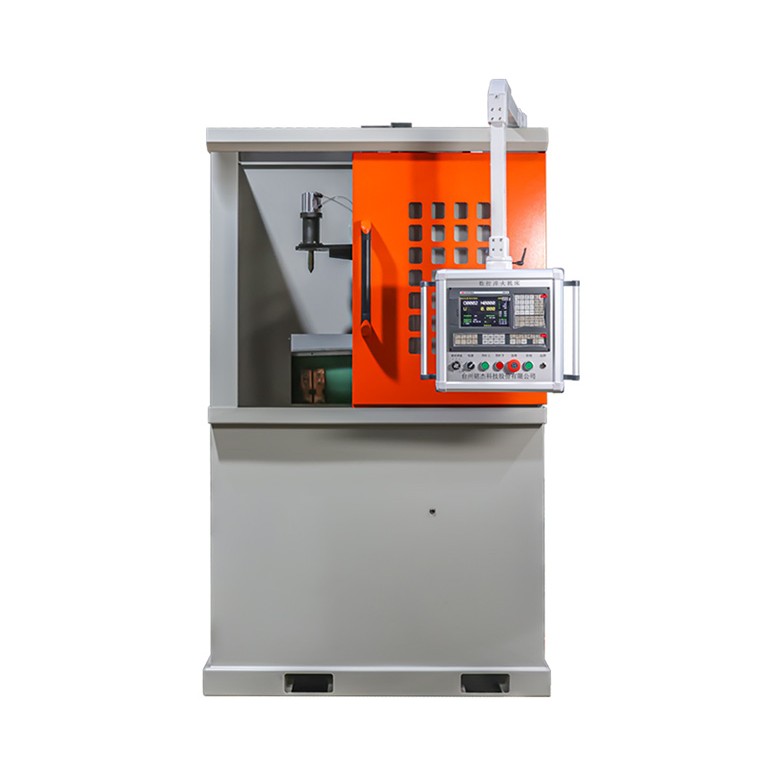

800L vertical quenching machine tool

CNC control system: Humanized CNC design with functions such as continuous quenching, simultaneous quenching, segmented continuous quenching, segmented simultaneous quenching, etc

PLC touch screen operation is convenient, real-time display, and can store more than 100 processes High quenching hardness, fast speed, no deformation during quenching, and the top cone can move up and down It has the characteristics of energy conservation, environmental protection, intelligence, automation, less oxidation, and less deformation Time saving and labor-saving, the quenching process does not require manual adjustment, the program is set, and the equipment automatically completes quenching

Consult Now

customer service telephone numbers 400-900-8358

project	parameter	project	parameter
Workstation	1	maximum workpiece weight	300KG
Maximum clamping length of workpiece in workstation	800MM	Quenching feed rate	6-3000mm/min
Maximum clamping part diameter	300MM	Transformer moves quickly	3000mm/min
Maximum quenching length	800MM	Numerical Control System Control Accuracy	0.001mm
Numerical Control System	Kane Emperor System	servo motor	MiG with brake motor
operating mode	Automatic or manual (CNC programming)
Machine tool functions	Automatic lifting, rotation, spraying, scanning, segmented quenching
cover an area	Length 1280MM * Width 680MM * Height 2100mm
