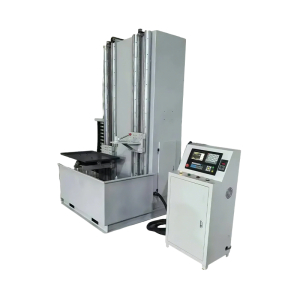

Customized CNC machine tools
Customized CNC machine tools
  • Customized CNC machine tools
  • Customized CNC machine tools

Customized CNC machine tools

Suitable for surface quenching of motor shafts, pin shafts, gears, camshafts, automotive parts, precision hardware components, etc

CNC control system: Humanized CNC design with functions such as continuous quenching, simultaneous quenching, segmented continuous quenching, segmented simultaneous quenching, etc. The PLC touch screen is easy to operate, real-time display, and can store more than 100 processes. The quenching hardness is high, the speed is fast, the quenching does not deform, and the top cone can move up and down. It has the characteristics of energy conservation, environmental protection, intelligence, automation, less oxidation, and less deformation, saving time and effort. The quenching process does not require manual adjustment. The program is set up and the equipment automatically completes the quenching process

Consult Now
customer service telephone numbers 400-900-8358

Project

Parameter

Parameter

Parameter

Workstation

1

1

1

Maximum clamping part length

600MM

1000MM

1500MM

Maximum clamping part diameter

150MM

300MM

300MM

Maximum quenching length

600MM

1000MM

1500MM

Maximum workpiece weight

200KG

300KG

300KG

Quenching feed rate

6-3000mm/min

6-3000mm/min

6-3000mm/min

Transformer moves quickly

3000mm/min

3000mm/min

3000mm/min

Numerical Control System Control Accuracy

0.001mm

0.001mm

0.001mm

Numerical Control System

Kane Emperor System

servo motor

MiG with brake motor

Operating mode

Automatic or manual (CNC programming)

Machine tool functions

Automatic lifting, rotation, spraying, scanning, segmented quenching

Floor area: (length * width * height)

1280*680*1900mm

1480*780*2300mm

1480*780*2500mm
