HOME > Intermediate frequency melting series > Medium frequency melting 15KW

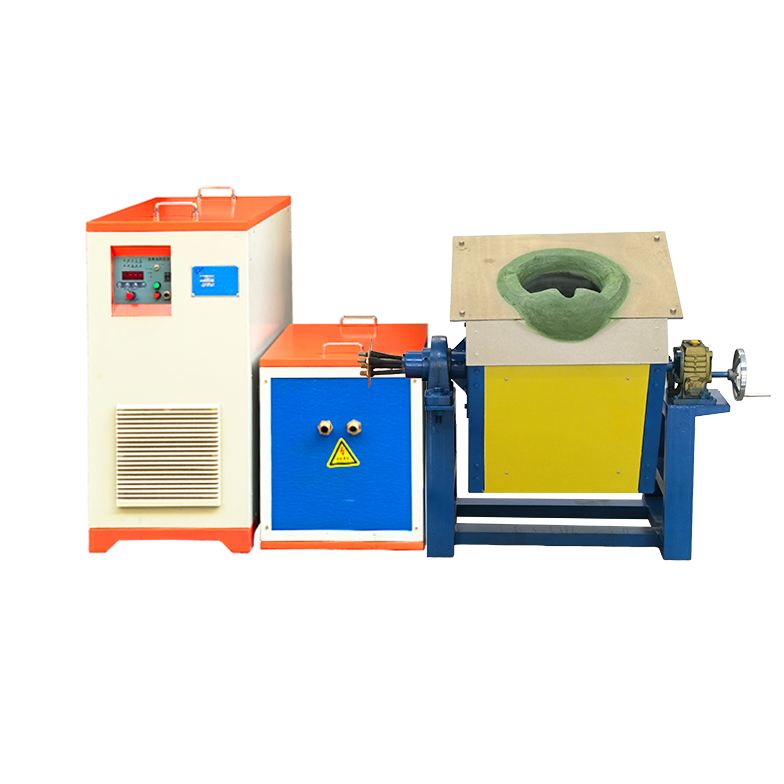

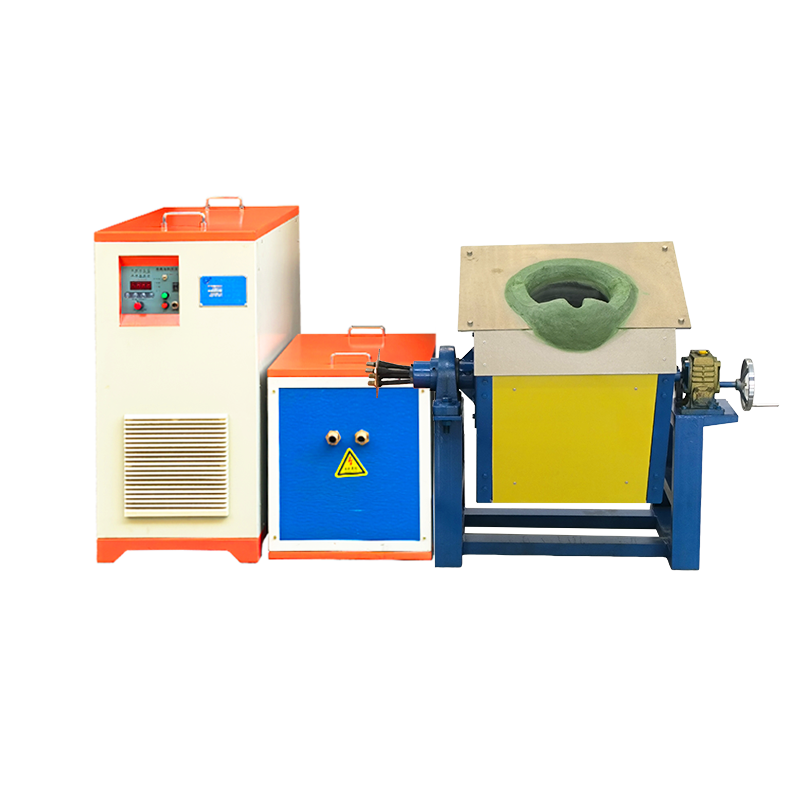

Medium frequency melting 15KW

High power, low frequency, good thermal conductivity.

High efficiency, low power consumption, simple and convenient operation and installation. 100% full load, 24-hour continuous working capacity. All solid state IGBT frequency conversion and function adjustment, achieving automatic frequency tracking. Multiple automatic protection functions such as overvoltage, overcurrent, overheating, phase loss, and water shortage ensure the reliability of the equipment. The manual and automatic adjustment can improve the quality of workpiece heating and the repeatability and continuity of heating.

Consult Now

customer service telephone numbers 400-900-8358

Model	MJZP-15KW	Maximum Input Power	15KVA
Input voltage	three-phase380V	Heating oscillation current	10～60A
Input Voltage	three-phase380V±20% 50 or 60HZ	Output oscillation frequency	1KHZ～20KHZ According to the customer's workpiece heating requirements
Duty cycle	100%	Cooling water pressure	0.02Mpa
Cooling water flow rate	≥10/Min	Main extension cable length	1.5-2M
Host volume mm	510X280X520	Weight	27KG
Auxiliary machine volume mm	530X280X520	Auxiliary machine weight	31KG
