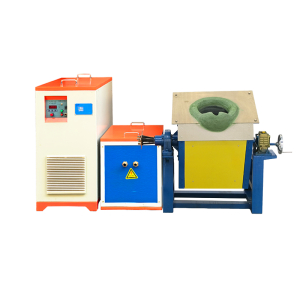

Medium frequency melting 110KW

High power, low frequency, good thermal conductivity.

High efficiency, low power consumption, simple and convenient operation and installation. 100% full load, 24-hour continuous working capacity. All solid state IGBT frequency conversion and function adjustment, achieving automatic frequency tracking. Multiple automatic protection functions such as overvoltage, overcurrent, overheating, phase loss, and water shortage ensure the reliability of the equipment. The manual and automatic adjustment can improve the quality of workpiece heating and the repeatability and continuity of heating.

Consult Now

customer service telephone numbers 400-900-8358


Model	ZP-110KW	Maximum Input Power	110KVA
Input voltage	three-phase380V±10%	Heating oscillation current	10～165A
Input Voltage	three-phase380V±20% 50 or 60HZ	Output oscillation frequency	1KHZ～20KHZ According to the customer's workpiece heating requirements
Duty cycle	100%	Cooling water pressure	≥0.3Mpa
Cooling water flow rate	≥10/Min	Main extension cable length	1.5-2M
Host volume mm	740×400×880	Weight	91KG
Auxiliary machine volume	560X440X530	Auxiliary machine weight	48KG
Furnace body size	1200X900X1000	Furnace weight	148KG
