HOME > Intermediate frequency melting series > Medium frequency melting series 45KW

Medium frequency melting series 45KW

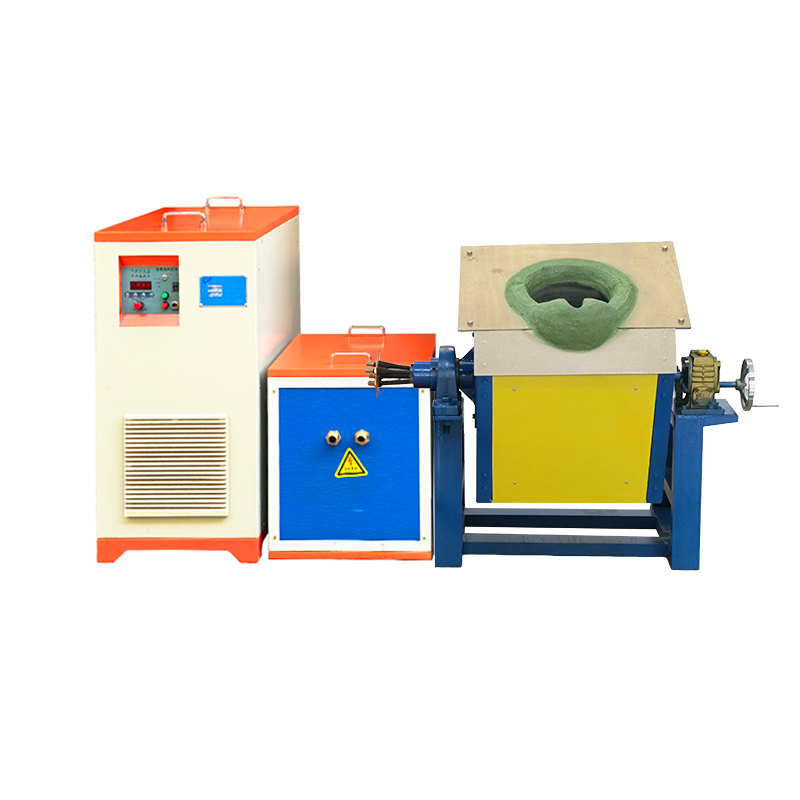

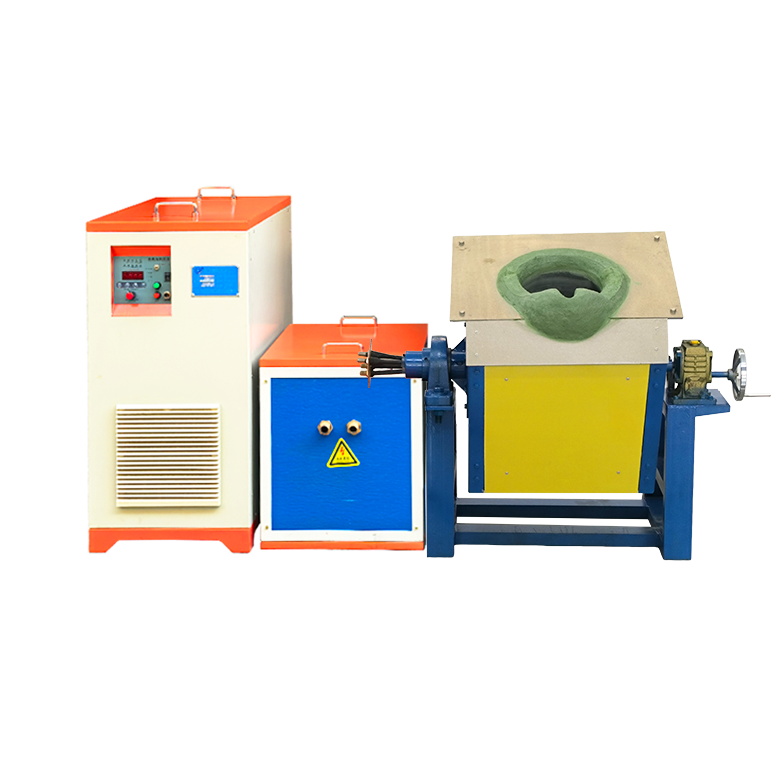

The 45KW medium frequency melting furnace consists of one set of 45KW medium frequency power supply, one set of capacitor compensation box, one set of water-cooled cable, furnace body (customized), one set of equipment connection power line, and one set o

High power, low frequency, good thermal conductivity, high efficiency, low power consumption, simple and convenient operation and installation. 100% full load, 24-hour continuous working capacity. All solid state IGBT frequency conversion and function adjustment, achieving automatic tracking of frequency conversion, Multiple automatic protection functions such as overvoltage, overcurrent, overheating, phase loss, and water shortage ensure the reliability of the equipment. The manual and automatic adjustment can improve the quality of workpiece heating and the repeatability and continuity of heating.

Consult Now

customer service telephone numbers 400-900-8358

Model	ZP-45KW	Maximum Input Power	45KVA
Input voltage	three-phase380V±10%	Heating oscillation current	10～70A
Input Voltage	three-phase380V±20% 50 or 60HZ	Output oscillation frequency	1KHZ～20KHZ According to the customer's workpiece heating requirements
Duty cycle	100%	Cooling water pressure	≥0.3Mpa
Cooling water flow rate	≥10/Min	Main extension cable length	1.5-2M
Host volume mm	640×360×570	Weight	46KG
Volume of capacitor box mm	530X280X520	Auxiliary machine weight	31KG
