Medium frequency melting 70KW

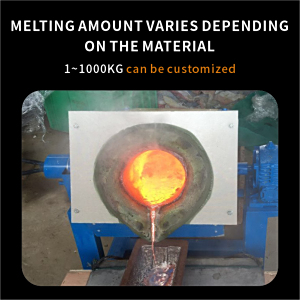

25kg of molten iron is supplied by a 70KW medium frequency power supply, with a melting temperature of up to 1600 degrees Celsius and a melting time of about 40 minutes per furnace

High power, low frequency, good thermal conductivity, High efficiency, low power consumption, simple and convenient operation and installation, 100% full load, 24-hour continuous working ability. All solid state IGBT frequency conversion and function adjustment, achieving automatic tracking of frequency conversion, Multiple automatic protection functions such as overvoltage, overcurrent, overheating, phase loss, and water shortage ensure the reliability of the equipment. The manual and automatic adjustment can improve the quality of workpiece heating and the repeatability and continuity of heating.

Consult Now

customer service telephone numbers 400-900-8358

Model	MJ-70KW	Maximum Input Power	70KW
Input voltage	three-phase380V±10%	Heating current	1-100A
Input Voltage	three-phase380V±20% 50 or 60HZ	Output oscillation frequency	1-20KHZ
Duty cycle	100%	Cooling water pressure	≥0.05Mpa
Cooling water flow rate	≥10/Min	Main extension cable length	1.5-2M
Host volume mm	640*360*570	Weight	52KG
Auxiliary machine volume mm	530*280*520	Auxiliary machine weight	31KG
Output control	Can be externally controlled
Output current regulation	0-5V（Can achieve external control）
Other	The equipment has IGBT overcurrent, overtemperature, overvoltage, underwater and other alarm functions
